Axial Duct Fans: Structure & Design for Cleanroom Exhaust Systems
The core components of an axial duct fan consist of safety guard, impeller, motor and housing. The protective safety guard prevents accidental contact with rotating parts. The impeller is the key part that generates airflow. Driven by the reliable motor, the impeller spins to push air through the ductwork. The housing, available in carbon steel, galvanized steel and stainless steel, protects internal components and adapts to different working media. We can customize the material selection according to customers’ site conditions, such as stainless steel for humid or corrosive workshop environments. Our impellers are precision manufactured to reduce turbulence and noise during continuous operation, meeting the strict noise limits required by cleanroom standards.

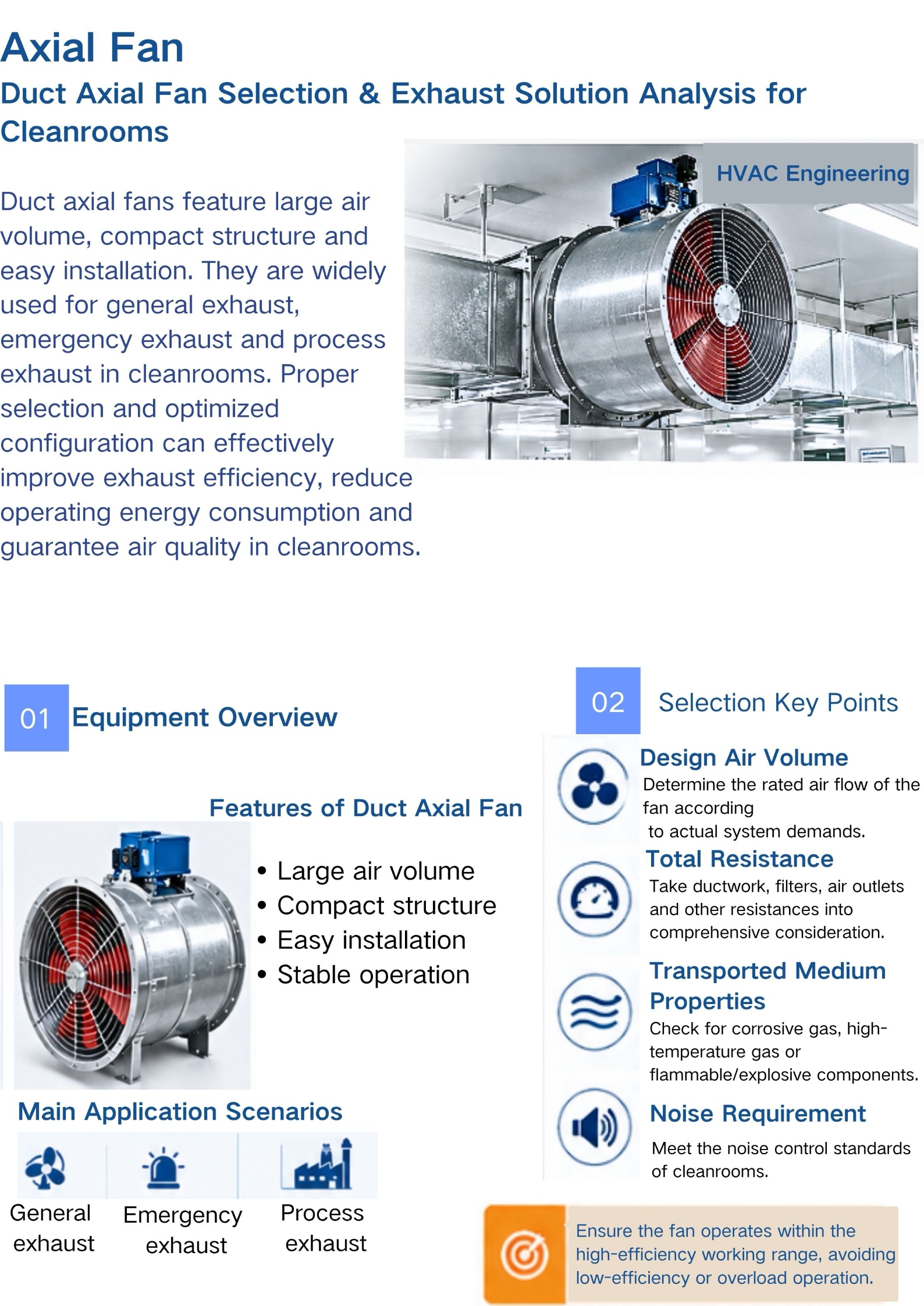

When selecting axial duct fans, engineers must comprehensively consider the designed airflow, total duct resistance, properties of conveyed gas and noise requirements. The fan operating point must stay within its high-efficiency zone to prevent insufficient airflow and excessive energy consumption. Many buyers make the mistake of choosing fans only by nominal airflow data without calculating full system resistance, which causes the fan to run outside its optimal working curve after installation. This error results in higher electricity bills and shortened service life of the whole ventilation system.
For cleanrooms, exhaust volume design meets not only process emission requirements, but also indoor pressure differential management. Clean zones need to maintain specified positive or negative pressure. If exhaust media carries corrosive vapors, high-temperature air or flammable components, anti-corrosion, explosion-proof or high-temperature resistant fan models shall be selected with matched safety protections. Explosion-proof variants are ideal for workshops handling solvent or chemical raw materials, eliminating ignition risks from gas mixture.

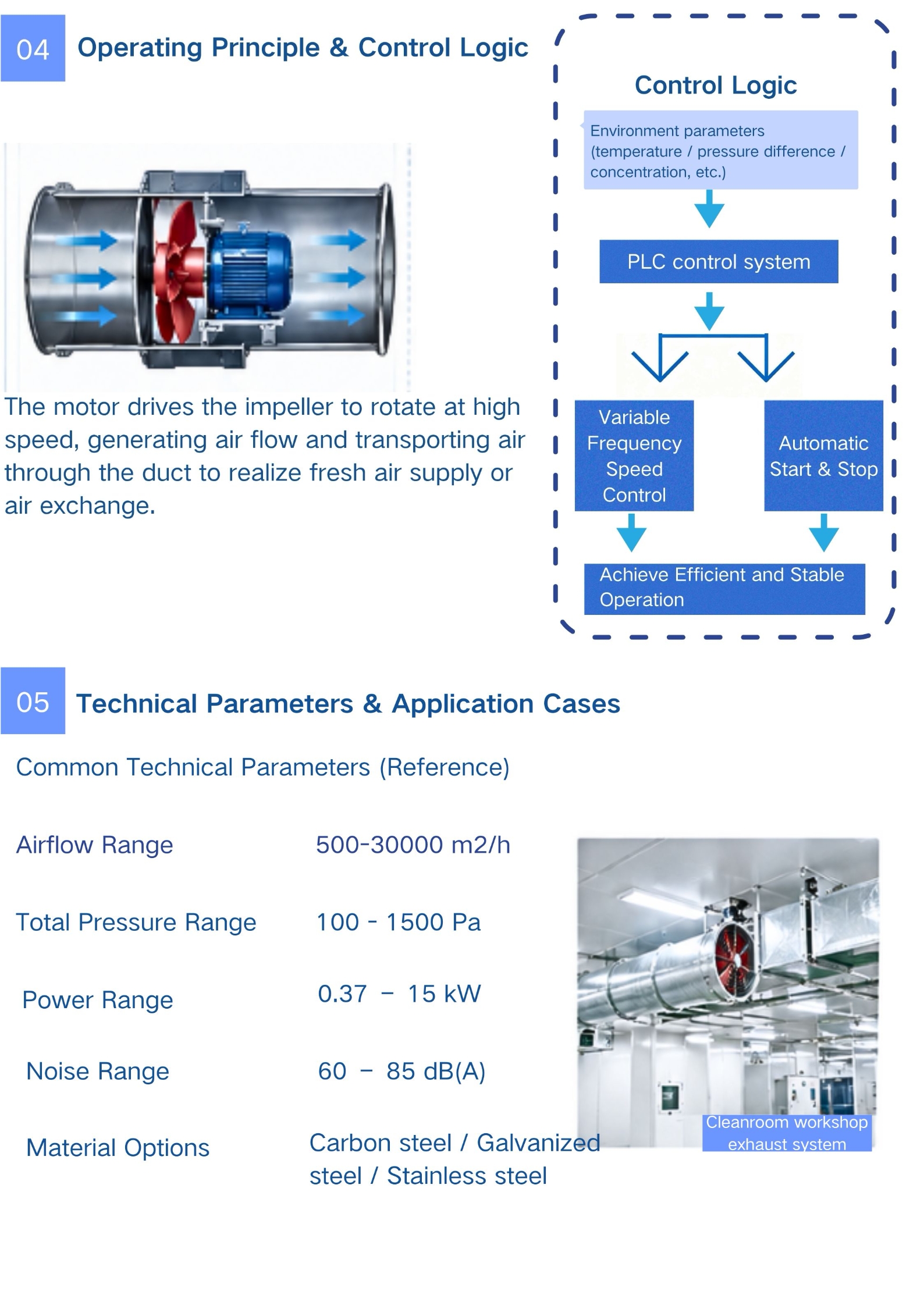

Combined with optimized duct layout, variable frequency speed control and automatic start-stop functions, well-selected axial duct fans improve exhaust efficiency and cut operating power consumption. They consistently maintain indoor air quality and stabilize production environments. Variable frequency drives allow the fan to adjust airflow automatically according to real-time pressure, temperature and concentration sensors, so the system does not run at full load unnecessarily. Shandong Fengdun Environmental Technology provides customized axial duct fan solutions for cleanroom projects worldwide. Our technical team supports on-site parameter evaluation, drawing review and after-sales technical guidance for global manufacturers.
